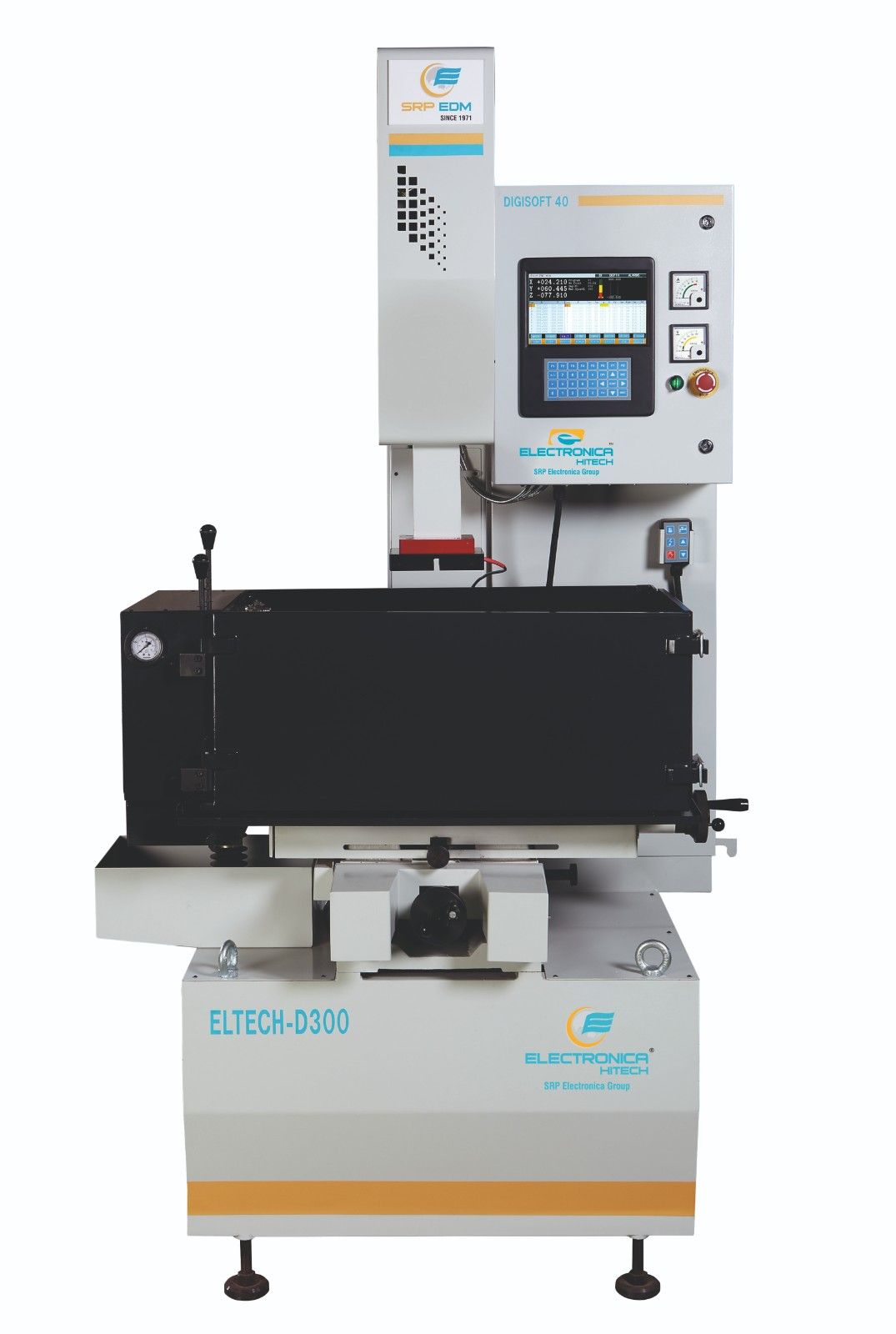

EDM EDM Machine ELTECH D Series
Product Detail
Parameter Unit ELTECH-D 300/ D 300 ZNC ELTECH-D 400 ZNC ELTECH- D 450 ELTECH -D 500 ELTECH-D 600 ELTECH-D 700
X, Y Travel Size mm 300 X200 400 X 300 450 X350 550 X450 650 X 550 700 X600
Work Table Size mm 500 X 300 600 X 400 700 X450 900 X500 1000 X 600 1200X 650
Z Axis Travel mm 250 250 250 220 300 300
Back Slide mm NA 200 250 330 300 350
Max.Electrode Weight Kg 100 100 75 120 150 200
Max Load on Worktable Kg 300 500 700 1500 2000 2000
Daylight 515 710 700 760 1000 950
Work Tank internal size mm 800 X500X 350 1000 X 600 X400 1180 X 620 X 450 1440 X 860 X 500 1920 X 1060 X 620 1950 X 1050 X 650
Overall weight Kg 1500 2000 1600 1900 3500 3800
Overall Dimensions mm 1200 X1250 X 2270 1550 X 1700 X 2450 1485 X 1420 X1980 1600 X 1600 X2030 2060 X 1790 X 2300 2400 X 2010 X 2740
Dielectric unit dimensions mm 1355 X 780 X 450 1450 X 900 X 450 1400 X 1800 X 550 1800 X 1300 X 450
Dielectric capacity Litre 260 400 420 520 490 630
