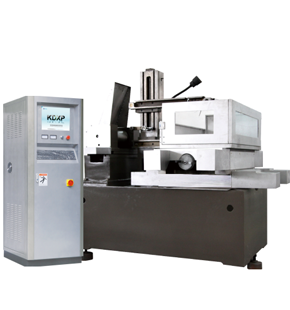

Slideshow image

CNC Reusable Wire Cut EDM
Product Detail
Parameters/ Specification RW7735 RW7745 RW7750 RW7763
Worktable travel (mm) 350x450 450x550 450x550 630x800
Worktable dimension (mm) 520x770 620x860 600x900 660x1100
Max.cut thickness (optional)(mm) 400 500 500 500(800)
Max Taper (optional) ± 3°(±30°) ± 3° ± 3°(±30°) ± 3°(±30°)
Best surface finish (um) Ra(single cut)2.5 Ra(single cut)2.5 Ra(single cut)2.5 Ra(single cut)2.5
Ra(Multi-cut)1.5 Ra(Multi-cut)1.5 Ra(Multi-cut)1.5 Ra(Multi-cut)1.5
Best accuracy (mm) ≤0.015 ≤0.015 ≤0.015 ≤0.015
Ball screw and transmission Precision ball screw Precision ball screw Precision ball screw Precision ball screw
Precision steel roller/linear guideway Precision steel roller/linear guideway Precision steel roller/linear guideway Precision steel roller/linear guideway
Max.load (kg) 400 500 800 1000
Weight (kg) 1700 2000 2300 4500

The Specifications and information above-mentioned may be changed without prior notice.
For more details, please contact ELECTRONICA.
