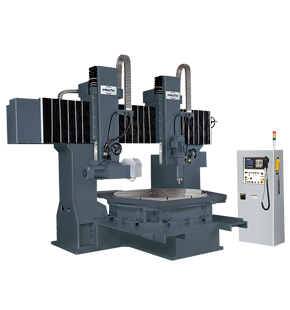

PSRP Rotary Series
Description

Proth Industrial Co. Ltd., Taiwan, established in 1980, manufactures about 800 machines every year.Recognized for its excellence, Proth is dedicated to researching and developing the most comprehensive range of surface grinders available.

Proth manufactures machines with table sizes ranging from 200 x 400 mm to 1900 x 6150 mm. The company also specializes in manufacturing horizontal rotary table surface grinder machines. Table diameter of these horizontal rotary surface grinders range from 600 - 1500 mm.

Product Detail
SPECIFICATION / MODELS PSRP
1000S 1200S 1500S
General Capacity Max. grinding radius 600mm 700mm 800mm
Vertical grinding diameter φ200~φ1000mm φ200~φ1200mm φ200~φ1500mm
Spindle center height from table 900mm(1100mm)
Max. height from table top to bottom of standard wheel 645mm
Table diameter 1100mm 1300mm 1500mm
Rotary Table
Max. speed 60 r.p.m.
Table motor 3.75kW/5HP
Cross Movement Continuous cross feed 3000mm/min
Hand feed per revolution MPG
Hand feed per division MPG
Vertical Downfeed Rapid traverse approx.(option) 250mm/min
Hand feed per revolution MPG
Hand feed per division MPG
Grinding Wheel Dimension(O.D x W x I.D) 510x100x203mm
Spindle speed(50/60Hz) 1150 r.p.m.
SPECIFICATION / MODELS PSRC
500S 600S
General Capacity Max. grinding radius 290mm 340mm
Spindle center height from table 500mm
Max. height from table top to bottom of standard wheel 322mm
Table diameter 500mm 600mm
Rotary Table Max. speed 60 r.p.m.
Table motor 1.5kW/2HP
Cross Movement
Continuous cross feed 1000mm/min
Hand feed per revolution 5mm
Hand feed per division 0.02mm
Vertical Downfeed Rapid traverse approx. (option) 200mm/min
Handwheel per revolution 0.25mm
Handwheel per divison 0.002mm
Grinding Wheel Dimension (O.D x W x I.D) 355x50x127mm
Spindle speed(50/60Hz) 1500/1800 r.p.m.

The Specifications and information above-mentioned may be changed without prior notice.
For more details, please contact ELECTRONICA.
