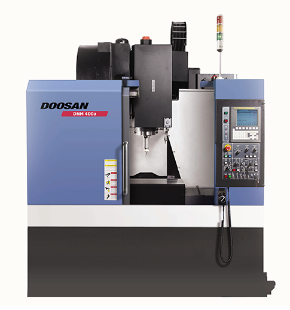

High Productivity Vertical Machining Center
Travel X: 635~2160 / Y: 435~900 / Z: 500~650
Unique Features
Description

DN Solutions is one of the largest machine tool companies in the world. With a production capacity of 10,000 machines every year, the company manufactures a wide range of CNC Lathes, Vertical Machining Centers, Horizontal Machining Centers, Horizontal Borers, 5 Axes Machining Centers and Multi-Axis CNC Lathes.

Product Detail
Particular Item Unit DNM 400 DNM 400a DNM 400 HS DNM 400 II
Table Working Surface mm 920 x 435 790 x 435 920 x 435 920 x 435
T-Slot(Size*number*pitch) mm (4-125 x 18H8) (4-125 x 18H8) (4-125 x 18H8) (4-125 x 18H8)
Max.Table Load Kg 600 400 600 600
Travel X Longitudinal travel (X-axis) mm 762 635 762 762
Y Cross travel (Y-axis) mm 435 435 435 435
Z Vertical travel(Z-axis) mm 510 510 510 510
Distance from spindle to table mm 150 ~ 660 150 ~ 660 150 ~ 660 150 ~ 660
Spindle Spindle nose taper ISO #40, ISO #40, ISO #40, ISO #40,
Spindle Speed (Pulley) RPM 8000 8000 15000 8000
Feed Cutting Feed Rate( X,Y,Z-axis) MM/MIN 15000 15000 24000 15000
Rapid Traverse Rate (X, Y -axis) MM/MIN 36000 30000 48000 36000
Rapid Traverse rate (Z -axis) MM/MIN 30000 30000 48000 30000

Particular Item Unit DNM 500 DNM 500 HS DNM 500 II
Table Working Surface mm 1200 x 540 1200 x 540 1200 x 540
T-Slot(Size*number*pitch) mm (4-125 x 18H8) (4-125 x 18H8) (4-125 x 18H8)
Max.Table Load Kg 800 800 800
Travel X Longitudinal travel (X-axis) mm 1020 1020 1020
Y Cross travel (Y-axis) mm 540 540 540
Z Vertical travel(Z-axis) mm 510 510 510
Distance from spindle to table mm 150 ~ 660 150 ~ 660 150 ~ 660
Spindle Spindle nose taper ISO #40, 7/24 TAPER ISO #40, 7/24 TAPER ISO #40, 7/24 TAPER
Spindle Speed (Pulley) RPM 8000 15000 8000
Spindle Speed (DDS) RPM
Feed Cutting Feed Rate( X,Y,Z-axis) MM/MIN 15000 24000 15000
Rapid Traverse Rate (X, Y -axis) MM/MIN 36000 48000 36000
Rapid Traverse rate (Z -axis) MM/MIN 30000 48000 30000

Particular Item Unit DNM 650 DNM 650 HS DNM 650 II DNM 650 P
Table Working Surface mm 1300 x 670 1300 x 670 1300 x 670 1500 x 680
T-Slot(Size*number*pitch) mm (5-125 x 18H8) (5-125 x 18H8) (5-125 x 18H8) (5-125 x 18H8)
Max.Table Load Kg 1000 1000 1000 600
Travel X Longitudinal travel (X-axis) mm 1270 1270 1270 1400
Y Cross travel (Y-axis) mm 670 670 670 670
Z Vertical travel(Z - xis) mm 625 625 625 625
Distance from spindle to table mm 150 ~ 775 150 ~ 775 150 ~ 775 150 ~ 775
Spindle Spindle nose taper ISO #40, 7/24 TAPER ISO #40, 7/24 TAPER ISO #40, 7/24 TAPER ISO #40, 7/24 TAPER
Spindle Speed (Pulley) RPM 8000 15000 8000 8000
Spindle Speed (DDS) RPM
Feed Cutting Feed Rate( X,Y,Z-axis) MM/MIN 15000 24000 15000 15000
Rapid Traverse Rate (X, Y -axis) MM/MIN 36000 48000 36000 36000
Rapid Traverse rate (Z -axis) MM/MIN 30000 48000 30000 30000

Particular Item Unit DNM 750 DNM 750 L DNM 900 P
Table Working Surface mm 1630 X 760 2160 X 760 1650 X 1000
T-Slot(Size*number*pitch) mm (5-125 x 18H8) (5-125 x 18H8) (4-250 x 18H8)
Max.Table Load Kg 1500 1800 500
Travel X Longitudinal travel (X-axis) mm 1630 2160 1650
Y Cross travel (Y-axis) mm 762 762 900
Z Vertical travel(Z - xis) mm 650 650 500
Distance from spindle to table mm 150 ~ 800 150 ~ 800 100 ~ 600
Spindle Spindle nose taper ISO #40, 7/24 TAPER ISO #40, 7/24 TAPER ISO #40, 7/24 TAPER
Spindle Speed (Pulley) RPM 8000 8000 12000
Spindle Speed (DDS) RPM
Feed Cutting Feed Rate( X,Y,Z-axis) MM/MIN 15000 15000 18000
Rapid Traverse Rate (X, Y -axis) MM/MIN 30000 24000 36000
Rapid Traverse rate (Z -axis) MM/MIN 24000 24000 36000

The Specifications and information above-mentioned may be changed without prior notice.
