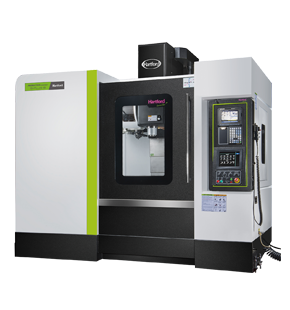

HARTFORD S-PLUS Series
Travel X: 800~1600/ Y: 520~820/Z: 550~700
Unique Features
Description

She Hong Industrial Co. Ltd,Taiwan (the owners of Hartford Brand) are the largest machining centre company in Taiwan, established in the year 1965. Today, backed by over 44 years of experience in the Research & Development of high precision machine tools, Hartford machines are among the world's more reputed CNC machining centers.

With over 100 models in their product range and manufacturing approx. 2000 sets per annum.

Product Detail
Particular Item Unit S-Plus 8 S-Plus 10
Table Working Surface mm 950 X 520 950 X 520
T-Slot(Size*number*pitch) mm 18 X 5 X 100 18 X 5 X 100
Max.Table Load Kg 500 700
Travel X Longitudinal travel (X-axis) mm 800 1020
Y Cross travel (Y-axis) mm 520 520
Z Vertical travel(Z –axis) mm 550 550
Distance from spindle end to table center mm 100 ~ 650 100 ~ 650
Spindle Spindle nose taper ISO40 ISO40
Spindle Speed (DDS) RPM 10000/15000 (OPT.) 10000/15000 (OPT.)
Feed Cutting Feed Rate( X,Y,Z-axis) MM/MIN X/Y/Z=10000 X/Y/Z=10000
Rapid Traverse Rapid Traverse (X-axis/Y-axis/Z-axis) MM/MIN X/Y=30000(40000 OPT.) Z =24000 (30000 OPT.) X/Y=30000(40000 OPT.) Z =24000 (30000 OPT.)

The Specifications and information above-mentioned may be changed without prior notice.
For more details, please contact ELECTRONICA.
