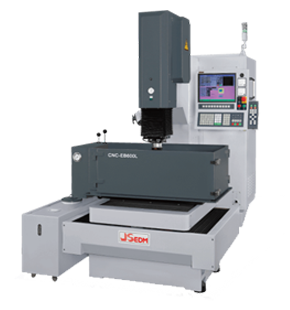

Slideshow image

CNC EDM Machine
Unique Features
Description

JSEDM is globally recognized for EDM manufacturing expertise based in Taiwan and have been producing high performance EDMs since 1982. Controller systems are not only our specialty but also our strength; a user-friendly interface ensures that the customer experiences a brand-new level of sparking.

Product Detail
Parameter Unit CNC - EB433 CNC - EB600L CNC - EB5435L
Capacity of Work Tank mm 900 x 520 x 385 1100 x 600 x 400 1250 x 800 x 520
Work Table Size mm 650 x 350 700 x 400 850 x 450
Longitudinal travel (X) mm 400 400 500
Cross travel (Y) mm 300 300 400
Z axis travel mm 300 300 350
Distance between Platen to table mm 310~610 270~570 420~770
Max.electrode weight Kg 100 100 200
Max. workpiece weight Kg 500 1000 2000
Fluid Tank capacity L 300 370 850
Machine Outside Dimension(WxDxH) mm 1700 x 1600 x 2350 1900 x 1750 x 2350 2700 x 2250 x2400
Machine Weight Kg 1750 2250 2700
Max. Machining Current A 60 60 60
Max. power input kva 7 7 7
Max. machining rate mm3/min 400 400
Min. Electrode wear ratio 0.12% 0.12% 0.12%
Best surface/Ra µm 0.2 0.2 0.2
Min. D.R.O resolution mm 0.001 0.001 0.001
