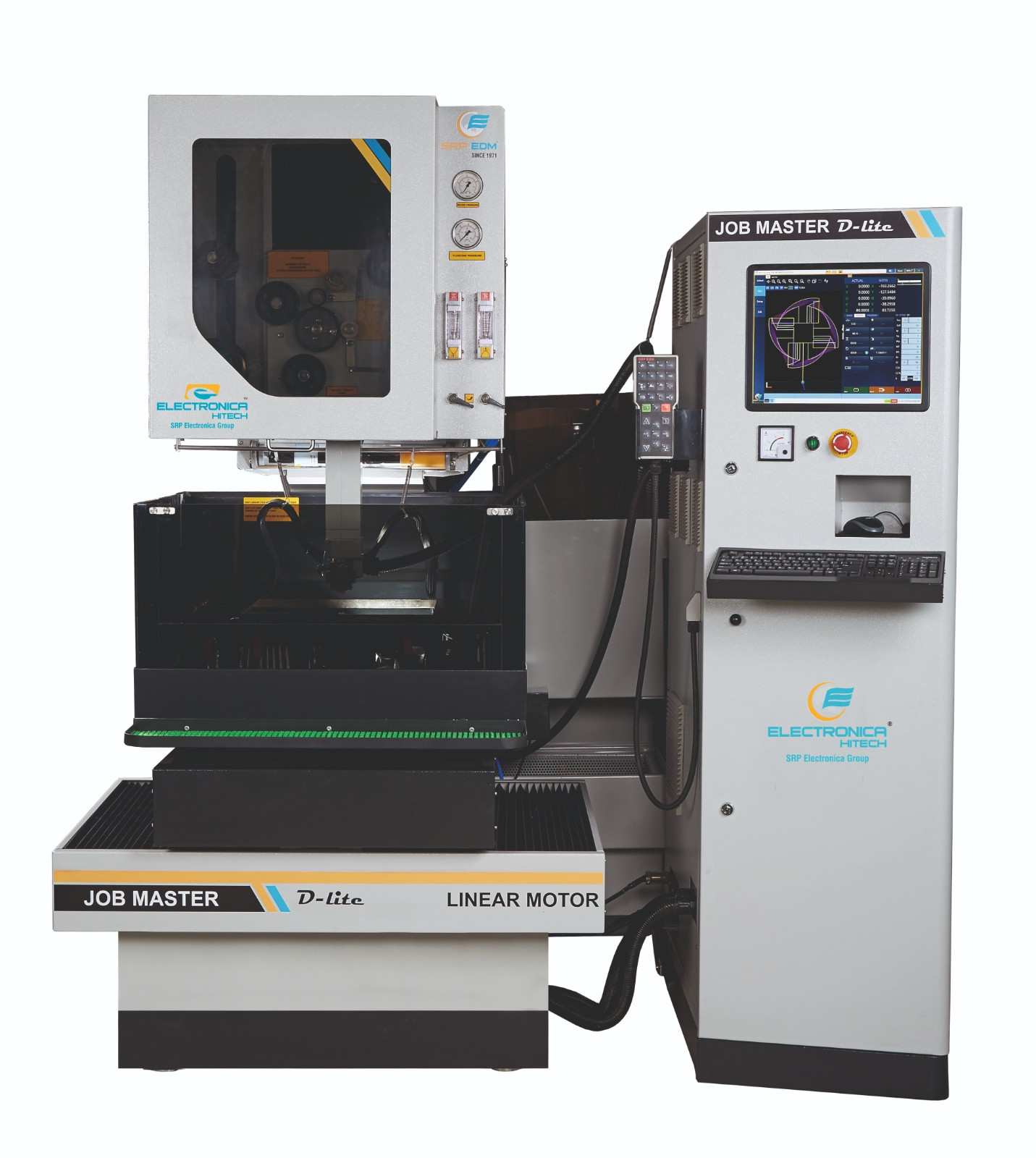

Electronica HiTech Wire EDM (Job Master)
Features
Product Detail
Particulars Unit Job Master D -zire Job Master D -lite
Table Size mm 635 x 475 635 x 475
Work-tank Internal Dimensions mm 800 x 650 800 x 650
Main Table Travel X,Y mm 400 x 300 400 x 300
Auxiliary Table travel U,V mm 80 x 80 80 x 80
Z-Axis Travel mm 250 250
Maximum Taper Angle Deg/mm ± 30 / 50 ± 30 / 50
Job Admit mm 245 245
Maximum Work-piece weight Kg 300 300
Machining Type
Flush Flush
Jog Speed X,Y mm/min 1000 1000
Jog Speed U,V mm/min 500 500
Jog Speed Z mm/min 600 600
Wire Threading
SAWT SAWT
Machine Foot Print mm 2350 x 2100 2350 x 2100
Wire Diameter mm 0.15 ~ 0.3 0.15 ~ 0.3
Wire Spool Size
DIN 125, DIN 160, P3R, P5R DIN 125, DIN 160, P3R, P5R
Cutting Speed* mm2/min 180 200
Best Surface Finish µRa 0.6 0.6

The Specifications and information above-mentioned may be changed without prior notice.
For more details, please contact ELECTRONICA.
