Description

Jiangsu Yawei Chuangkeyuan Laser Equipment Co., Ltd. (Hereinafter referred to as “YAWE-CKY”) head-quarter located in Wuxi City. The company was founded in 2008 and it is a wholly owned subsidiary of Jiangsu Yawei Machine Tool Co., Ltd.

As a sub-brand of Yawei, YAWEI-CKY is a high-tech enterprise specializing in R&D, manufacture and sales of 2D and 3D laser processing equipments. Positioned at the system integration and technical services of laser equipment, YAWEI-CKY provides laser cutting system, laser welding system, laser cladding system and laser quenching system. Established long-term and stable interaction and cooperation with research institutes such as Suzhou University and Jiangnan University, YAWEI-CKY can provide users with complete laser processing solutions and corresponding supporting facilities, which are widely used in rail transit, automobile and parts, engineering machines, ships, instrumentation, measuring tools, electronic communication, aerospace, petrochemical, and pharmaceutical &food packaging industry and other industries.

Product Detail

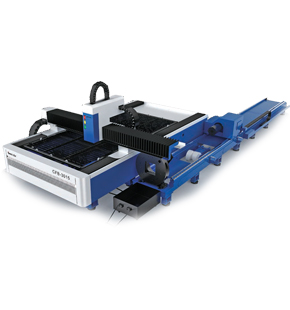

Item Unit CFB-3015 CFB-4020 CFB-6020
Processing range mm 3000 X 1500 4000 X 2000 6000 X 2000
Tube Processing range mm Round Tube Ø20~Ø220 Round Tube Ø20~Ø220 Round Tube Ø20~Ø220
X axis stroke mm 1520 (2350) 2020 (2850) 2020 (2850)
Y axis stroke mm 3040 4040 6040
Z axis stroke mm 240 240 240
W axis stroke 6040 6040 6040
X/Y/W axis Max.speed m/min 100 100 100
B1/B2 axis Max.speed m/min 50 50 50
X/Y/W axis Max. acceleration G 1 1 1
B1/B2 axis Max.acceleration rad.s2 60 60 60
Positioning accuracy mm ±0.05 ±0.05 ±0.05
Re-positioning accuracy mm ±0.03 ±0.03 ±0.03
Overall Dimensions( L x W x H) mm 8700 x 3500 x 2000 8700 x 4000 x 2000 9400 x 4000 x 2000

*Note: The Specifications and information above-mentioned may be changed without prior notice. For more details, please contact marketing@electronicahitech.com
