Description

Jiangsu Yawei Chuangkeyuan Laser Equipment Co., Ltd. (Hereinafter referred to as “YAWE-CKY”) head-quarter located in Wuxi City. The company was founded in 2008 and it is a wholly owned subsidiary of Jiangsu Yawei Machine Tool Co., Ltd.

As a sub-brand of Yawei, YAWEI-CKY is a high-tech enterprise specializing in R&D, manufacture and sales of 2D and 3D laser processing equipments. Positioned at the system integration and technical services of laser equipment, YAWEI-CKY provides laser cutting system, laser welding system, laser cladding system and laser quenching system. Established long-term and stable interaction and cooperation with research institutes such as Suzhou University and Jiangnan University, YAWEI-CKY can provide users with complete laser processing solutions and corresponding supporting facilities, which are widely used in rail transit, automobile and parts, engineering machines, ships, instrumentation, measuring tools, electronic communication, aerospace, petrochemical, and pharmaceutical &food packaging industry and other industries.

Product Detail

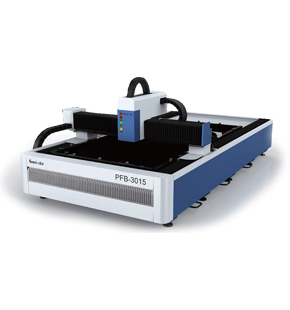

Item Unit PFB-3015 PFB-4020 PFB-6020 PFB-6025 PFB-8025 PFB-12025
Processing range mm 3000 X 1500 4000 x 2000 6000 x 2000 6000 x 2500 8000 x 2500 12000 x 2500
X axis stroke mm 1520 2020 2020 2520 2520 2520
Y axis stroke mm 3040 4040 6040 6040 8040 12040
Z axis stroke mm 120 120 120 240 240 240
X axis positioning speed m/min 100 100 100 100 100 100
Y axis positioning speed m/min 100 100 100 100 100 100
X / Y axis Max. trajectory speed m/min 141 141 141 141 141 141
X / Y axis Max. acceleration G 1.2 1.2 1.2 1 1 1.2
Postioning accuracy mm ±0.03 ±0.03 ±0.03 ±0.05 ±0.05 ±0.05
Re-positioning accuracy mm ±0.02 ±0.02 ±0.02 ±0.03 ±0.03 ±0.03
Max.load of worktable kg 800 1000 1600 5800 8000 11000
Overall Dimensions( L x W x H) mm 4525 x 2480 x 2000 5530 x 2975 x 2000 8150 x 3030 x 2000 8340 x 3615 x 2150 10877 x 3615 x 2150 15057 x 3615 x 2150
Power of laser source kW 2/3/4/6 (For reference only, adjust it according to the laser mode) 6/8/10/12/15/20/30 (For reference only, adjust it according to the laser mode)

*Note: The Specifications and information above-mentioned may be changed without prior notice. For more details, please contact marketing@electronicahitech.com
