Description

Jiangsu Yawei Chuangkeyuan Laser Equipment Co., Ltd. (Hereinafter referred to as “YAWE-CKY”) head-quarter located in Wuxi City. The company was founded in 2008 and it is a wholly owned subsidiary of Jiangsu Yawei Machine Tool Co., Ltd.

As a sub-brand of Yawei, YAWEI-CKY is a high-tech enterprise specializing in R&D, manufacture and sales of 2D and 3D laser processing equipments. Positioned at the system integration and technical services of laser equipment, YAWEI-CKY provides laser cutting system, laser welding system, laser cladding system and laser quenching system. Established long-term and stable interaction and cooperation with research institutes such as Suzhou University and Jiangnan University, YAWEI-CKY can provide users with complete laser processing solutions and corresponding supporting facilities, which are widely used in rail transit, automobile and parts, engineering machines, ships, instrumentation, measuring tools, electronic communication, aerospace, petrochemical, and pharmaceutical &food packaging industry and other industries.

Product Detail

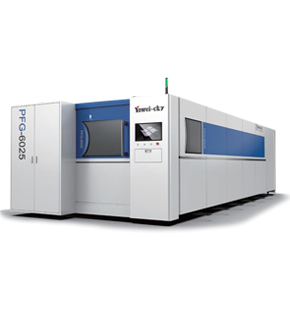

Item Unit PFG-3015 PFG-4020 PFG-6020 PFG-6025 PFG-8025 PFG-12025
Processing range mm 3000 X 1500 4000 x 2000 6000 x 2000 6000 x 2500 8000 x 2500 1200 x 2500
X axis stroke mm 1520 2020 2020 2520 2520 2520
Y axis stroke mm 3040 4040 6040 6040 8040 12040
Z axis stroke mm 240 240 300 300 300 300
X axis positioning speed m/min 100 100 100 100 100 100
Y axis positioning speed m/min 100 100 100 100 100 100
X / Y axis Max. trajectory speed m/min 141 141 141 141 141 141
X / Y axis Max. acceleration G 1.5 1.5 1.5 1.2 1.2 1.2
Postioning accuracy mm ±0.03 ±0.03 ±0.03 ±0.05 ±0.05 ±0.05
Re-positioning accuracy mm ±0.02 ±0.02 ±0.02 ±0.03 ±0.03 ±0.03
Max.load of worktable kg 1000 1800 2800 5800 8000 11000
Overall Dimensions( L x W x H) mm 8940 x 3040 x 2300 11200 x 4835 x 2250 15067 x 3552 x 2300 15140 x 4135 x 2300 19656 x 4135 x 2300 27920 x 4135 x 2300
Power of laser source kW 2/3/4/6/8/10/12/15/20/30

*Note: The Specifications and information above-mentioned may be changed without prior notice. For more details, please contact marketing@electronicahitech.com
