Description

Jiangsu Yawei Chuangkeyuan Laser Equipment Co., Ltd. (Hereinafter referred to as “YAWE-CKY”) head-quarter located in Wuxi City. The company was founded in 2008 and it is a wholly owned subsidiary of Jiangsu Yawei Machine Tool Co., Ltd.

As a sub-brand of Yawei, YAWEI-CKY is a high-tech enterprise specializing in R&D, manufacture and sales of 2D and 3D laser processing equipments. Positioned at the system integration and technical services of laser equipment, YAWEI-CKY provides laser cutting system, laser welding system, laser cladding system and laser quenching system. Established long-term and stable interaction and cooperation with research institutes such as Suzhou University and Jiangnan University, YAWEI-CKY can provide users with complete laser processing solutions and corresponding supporting facilities, which are widely used in rail transit, automobile and parts, engineering machines, ships, instrumentation, measuring tools, electronic communication, aerospace, petrochemical, and pharmaceutical &food packaging industry and other industries.

Product Detail

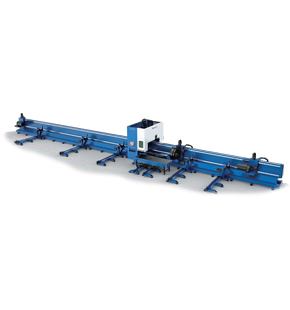

Item Unit TFS-9035 TFS-12045
Processing range mm Round Tube Ø20~Ø350 / Square Tube 20 ~ 240 Round Tube Ø20~Ø350 / Square Tube 20 ~ 310
Max. tube length mm 9000 12000
X axis stroke mm 650 650
Y axis stroke mm 550 550
X axis positioning speed m/min 75 75
Y axis positioning speed m/min 55 55
X axis acceleration G 1 1
Y axis acceleration G 0.3 0.3
W axis rotation speed rad/min 55 55
W axis rotation acceleration rad.s2 30 30
Postioning accuracy mm ±0.05 ±0.05
Re-positioning accuracy mm ±0.05 ±0.05
Overall Dimensions( L x W x H) mm 21000 X4000 X 2950 24000 x 4000 x 2950
Power of laser source kW 3000w~6000w 3000w~6000w

*Note: The Specifications and information above-mentioned may be changed without prior notice. For more details, please contact marketing@electronicahitech.com
