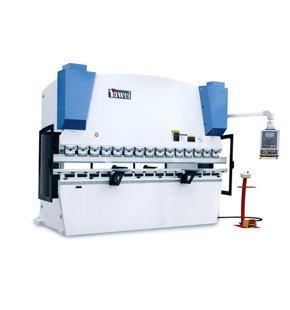

PBA Series- CNC Pressbrake
Unique Features
Description

Yawei, No.1 Brand in China and globally for its high quality and high performance technology solutions.Yawei manufactures CNC turret punches, CNC press brakes, CNC shears, and Coil Metal Processing such as Cut to Length lines and slitting lines.China�s high quality manufacturer. Controller from Siemens.

Product Detail
MODEL NOMINAL PRESSURE LENGTH OF WORK TABLE DISTANCE BETWEEN UPRIGHTS THROAT DEPTH RAM STROKE MAX OPENING HEIGHT RAM SPEED POWER OF MOTOR LxWxH OVERALL DIMENSION WEIGHT VOLUME OF OIL TANK
UNIT KN MM MM MM MM MM MM/S KW MM KG LTR
PBA-35/1250 350 1250 950 300 120 450 180/16/180 4 1720x1390x2340 2700 80
PBA-50/2050 500 2050 1750 350 175 480 180/16/180 5.5 2520x1450x2450 4700 150
PBA-80/2550 800 2550 2150 410 175 480 130/8/110 5.5 2940x1450x2450 5300 130
PBA-110/3100 1100 3100 2600 410 215 520 130/8/110 7.5 3600x1450x2580 7500 200
PBA-160/3100 1600 3100 2600 410 215 520 130/8/110 11 3620x1500x2700 9000 300
PBA-220/3100 2200 3100 2600 410 215 530 110/8/100 15 3640x1740x2780 11500 330

The Specifications and information above-mentioned may be changed without prior notice.
For more details, please contact ELECTRONICA.
