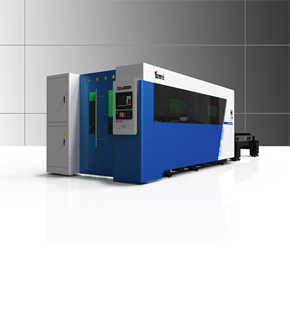

Slideshow image

CO2 Laser Cutting Machines
Unique Features
Description

Yawei, No.1 Brand in China and globally for its high quality and high performance technology solutions.Yawei manufactures CNC turret punches, CNC press brakes, CNC shears, and Coil Metal Processing such as Cut to Length lines and slitting lines.China�s high quality manufacturer. Controller from Siemens.

Product Detail
PARAMETERS UNIT HLH-1530 HLH-2040 HLH-3060
PROCESS RANGE(L x W) MM 3000x1500 4000x2000 6000x3000
X AXIS STROKE MM 3100 4100 6100
Y AXIS STROKE MM 1550 2100 2100
Z AXIS STROKE MM 100 100 100
X ASIX POSITION SPEED M/MIN 120 90 90
Y ASIX POSITION SPEED M/MIN 120 90 90
X/Y AXIS MAX RESULTANT M/MIN 170 127 127
X/Y AXIS ACCELERATION M/S� 1.5G 1G 0.75G
Z AXIS POSITION SPEED M/MIN 60 60 30
POSITION PRECISION MM �0.05 �0.05 �0.05
RE- POSITION PRECISION MM 0.02 0.02 0.02
CUTTING PRECISION MM � 0.1 � 0.1 � 0.1
SLOTTING WIDTH MM 0.15-0.3 0.15-0.3 0.15-0.3
MAX SUPPORT WEIGHT OF WORKTABLE KG 750 900 1500
SPACE MM 11430x53800 14500x6150 18500x8500
WEIGHT KG 14500 16500 23000

The Specifications and information above-mentioned may be changed without prior notice.
