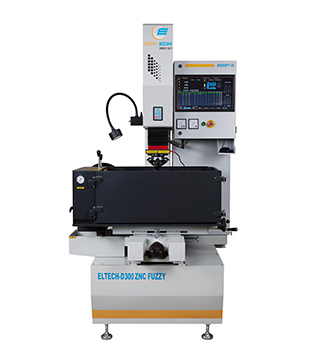

Slideshow image

ZNC FUZZY LOGIC EDM
Unique Features
Product Detail
Particulars Units ELTECH D 300 ZNC Fuzzy Logic
Depth of Throat mm 400
Daylight mm 515
Shut Height mm 265
Max. job height above table mm 250
Axes displacement (X,Y,Z) Ball screw with LM Guide Ways
Z Axis Servo System Ac Servo
Resolution of System Z mm 0.005
Least Count of Hand Wheel (X,Y) mm 0.020 with Vernier
Machine overall size ( W x D x H) mm 1280 X 1230 X 2150
Total machine Weight Kg 1250

The Specifications and information above-mentioned may be changed without prior notice.
For more details, please contact ELECTRONICA.
